The Garmin Xero L60i Laser Rangefinder enables you to know the distance and beyond. This high-performance rangefinder combines premium optics with advanced GPS technology and state-of-the-art sensors for an unmatched range-finding experience. Get a sharp view through a full-color, high-resolution graphic overlay that displays distance, mapping, navigation and more. Range trees out to 2,000 yards, and range animals out to 1,500 yards with 7X magnification. Don’t just know the distance — know the precise location with advanced navigation features. Drop a waypoint on locations you’ve ranged to keep track of them, or share the locations with your compatible device. Use the graphic overlay with onboard TopoActive mapping to navigate to projected waypoints with the Laser Locate™ feature. For locations even further, use the Sensor Locate™ feature to drop a waypoint. If you lose sight of the ranged location while traveling to it, visual recall and the mapping overlay on the display can guide you back to it.

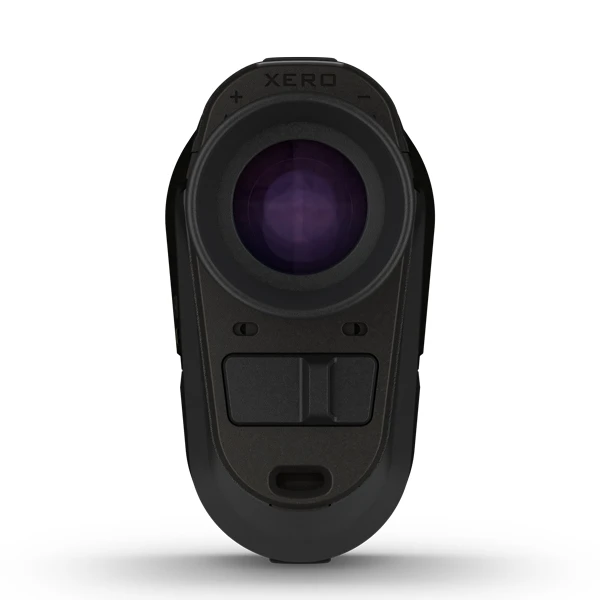

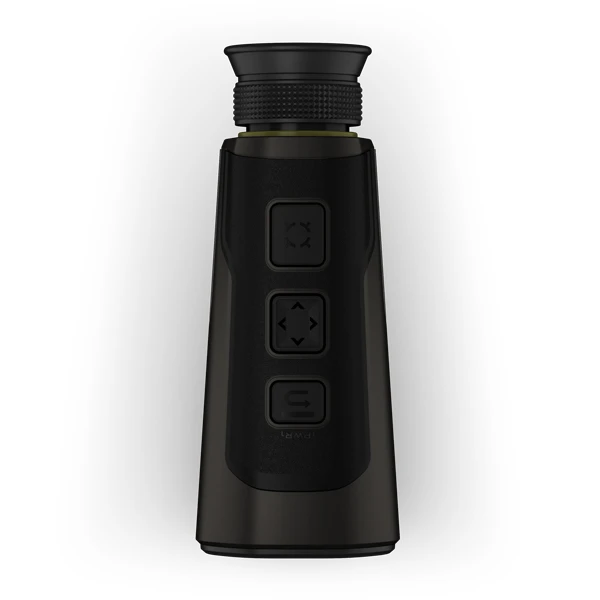

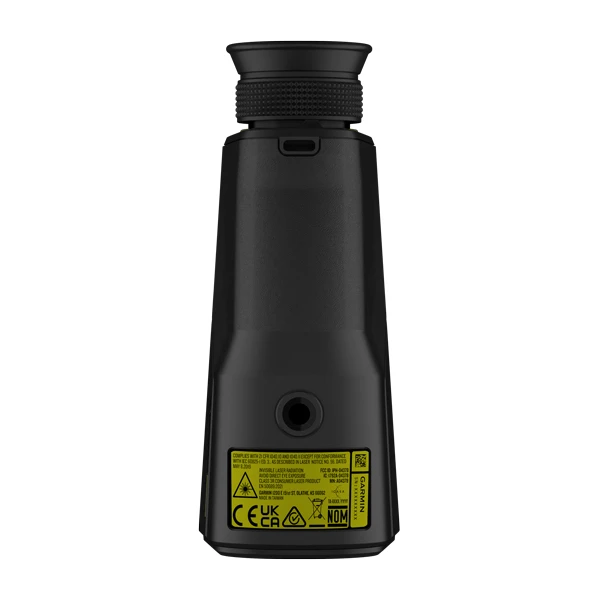

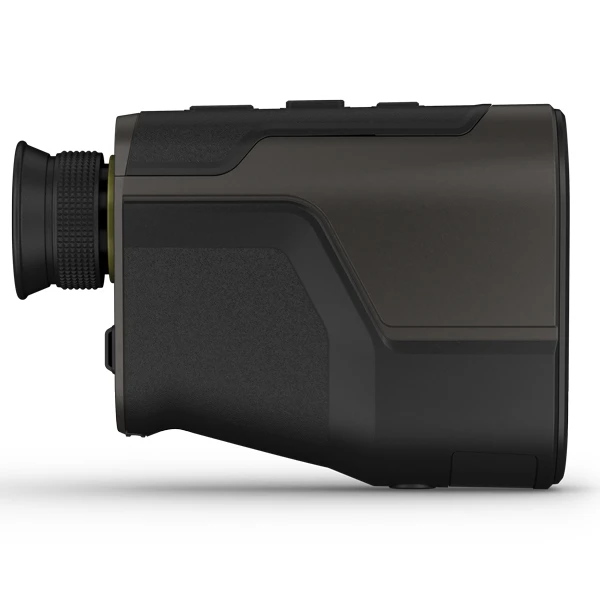

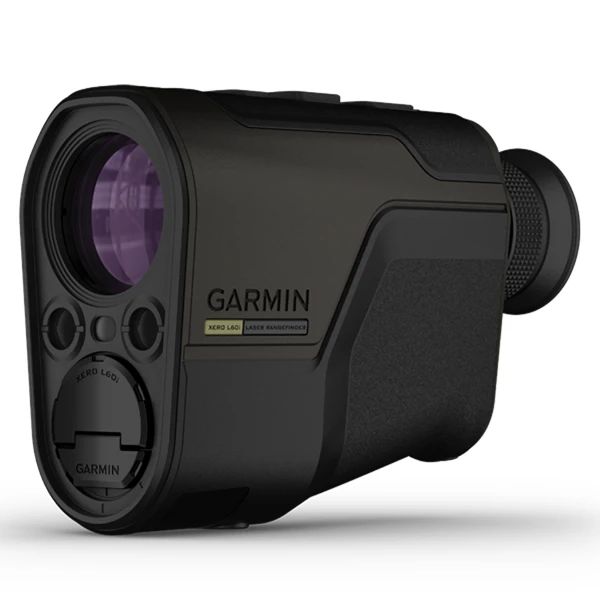

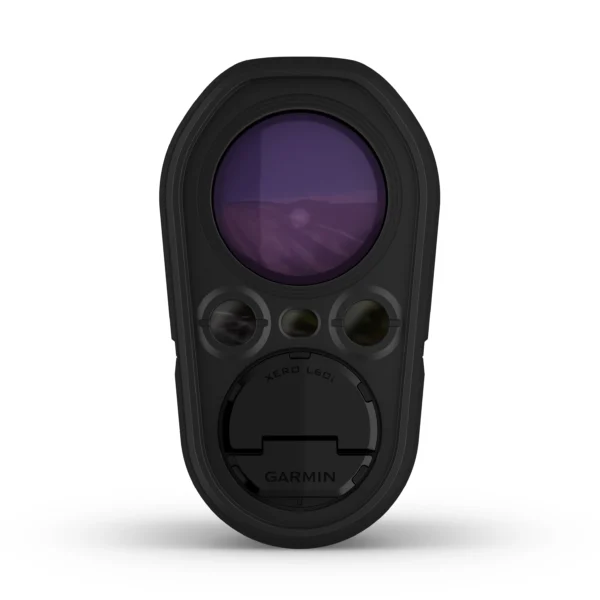

Garmin Xero L60i Laser Rangefinder
- Laser rangefinder with premium optics, built-in mapping and onboard navigation
- Bright, full-color, high-resolution graphic display overlay
- Razor-sharp optics with flat field of view, accurate color fidelity and superior light transmission
- 7X magnification with edge-to-edge clarity; automatic display brightness controls for optimal low-light performance
- Range trees out to 2,000 yards; range game animals out to 1,500 yards
- Drop a waypoint on objects you’ve ranged, and let the graphic display guide you with the Laser Locate™ feature
- Leverage state-of-the-art GPS technology to project a waypoint even further with the Sensor Locate™ feature
- Use visual recall to relocate an object you’ve ranged after you’ve lost sight of it
- Use the onboard Applied Ballistics® calculator to make the perfect shot
- Get arrow ballistics such as max arrow height, angle compensated range and more with Xero® Ballistics
- Connect your compatible Garmin device or your smartphone to share waypoint information and more
- Know where you are with built-in mapping, and see your position from a bird’s-eye perspective on the graphic overlay
- The device display shows you an elevation profile of where you want to go
- Built to withstand the harsh outdoor conditions with an IPX7 water-resistance rating
- 1 Year Warranty
In the Box:
- Xero L60i laser rangefinder Part Number:010-02691-00
- Carrying case
- 2 AAA lithium batteries
- Power/data cable
- Documentation
VERSATILE RANGE
Use the 7X magnification to range trees out to 2,000 yards and animals out to 1,500 yards. In optimal low-light conditions, reach all the way out to 7,600 yards to retro reflective objects. Get pinpoint accuracy and precision with proprietary precision lock technology.
GRAPHIC OVERLAY
Get a sharp view through a full-color, high-resolution graphic overlay that displays distance, location, mapping, ballistics, navigation and more.
NAVIGATION FEATURES
Look through the device, and let the graphic display overlay guide you to waypoints you’ve dropped with on-board TopoActive mapping. Keep your bearings with a 3-axis compass, and see elevation profiles of your route. You can even see an overhead perspective of your location on the graphic display overlay.
ADVANCED WAYPOINTS

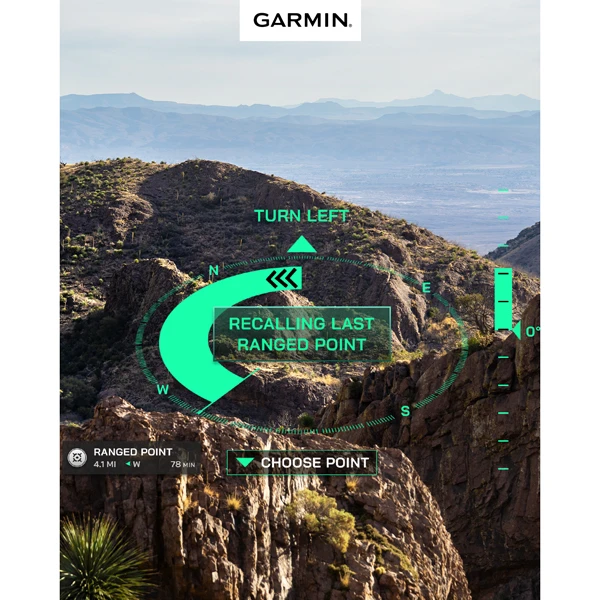

Leverage advanced GPS technology and onboard sensors to drop a waypoint on objects you’ve ranged with the Laser Locate waypoint projection feature. Project a waypoint beyond rangeable distances with the sensor locate feature. If you lose sight of an object while traveling to it, visual recall on the graphic overlay will guide you back to it.
ONBOARD BALLISTICS
Access the onboard Applied Ballistics Ultralight solver with the AB Quantum app, and get the data you need to make the perfect shot. Archers also get arrow ballistics, such as max arrow height, angle-compensated range and more.
NAVIGATION ECOSYSTEM
Send waypoints or data to your compatible smartphone and then share it with your compatible Garmin device so you can close the distance without using the graphic overlay. Spot something but your partner can’t find it? This feature also lets you share waypoints with your partner’s compatible devices.
General |
| DIMENSION | 4.94" x 3.53" x 1.99" (125.41 mm x 89.66 mm x 50.59 mm) |
|---|
| WEIGHT | No battery: 0.80 lbs (362.88 g)
With battery: 0.849 lbs (385.1 g) |
|---|
| WATER RATING | IPX7 |
|---|
| DISPLAY TYPE | DLP augmented reality |
|---|
| DISPLAY SIZE | Overlaid on visual scene |
|---|
| DISPLAY RESOLUTION | 960 x 540 pixels |
|---|
| BATTERY TYPE | 2 AAA lithium batteries (included) |
|---|
| BATTERY LIFE | 1,400 ranges (1 sec range, 10 sec display) |
|---|
| MULTI-COLOR DISPLAY | |
|---|
| OPERATING RANGE | -20° C to 60° C (-4° F to 140° F) |
|---|
| MEMORY/HISTORY | 32 GB internal less file system space |
|---|
| INTERFACE | USB-C |
|---|
| LASER CLASSIFICATION | Class 1 |
|---|
Daily Smart Features |
| CONNECTIVITY | Bluetooth® |
|---|
| MOBILE APP | Explore App |
|---|
Xero Laser Range Finder Features |
| MAGNIFICATION | 7x |
|---|
| OBJECTIVE | 32 mm |
|---|
| FIELD OF VIEW | 7 degrees |
|---|
| FIELD OF VIEW (LINEAR FEET AT 1,000 YARDS) | 365 ft |
|---|
| EYE RELIEF | 0.71" (18 mm) |
|---|
| EXIT PUPIL DIAMETER | 4.6 mm |
|---|
| FOCUS ADJUSTMENT | +/- 4 diopters |
|---|
| COMPASS | |
|---|
| BAROMETER | |
|---|
| PRECISION | +/- .1 m |
|---|
| ACCURACY | +/- .25 m out to 1,000 m
+/- 1.0 m beyond 1,000 m |
|---|
| DISTANCE TO TARGETS (FULL SUN) | Animals: 1,375 m (1,500 yds); Trees: 1,800 m (2,000 yds); Retro reflective: 5,000 m (5,500 yds) |
|---|
| DISTANCE TO TARGETS (OPTIMAL CONDITIONS) | Animals: 2,775 m (3,000 yds); Trees: 3,600 m (4,000 yds); Retro reflective: 7,000 m (7,500 yds) |
|---|
| LASER LOCATE | |
|---|
| SENSOR LOCATE | |
|---|
| ONBOARD MAPPING | |
|---|
| VISUAL RECALL | |
|---|
| APPLIED BALLISTICS SOLVER | Ultralight, access via AB Quantum app |
|---|
| ARCHERY BALLISTICS | |
|---|
| ANGLE COMPENSATED DISTANCE | |
|---|
| GARMIN SHARE | |
|---|
| STORES LOCATIONS, TRACKS AND COURSES | |
|---|
| MEASURES DISTANCES BETWEEN 2 POINTS | |
|---|
| AREA CALCULATION | |
|---|
| COMPATIBLE WITH GARMIN EXPLORE APP | |
|---|
| CARRYING CASE | yes (included) |
|---|
| LASER BEAM DIVERGENCE | 0.5 x 0.5 mrad |
|---|
